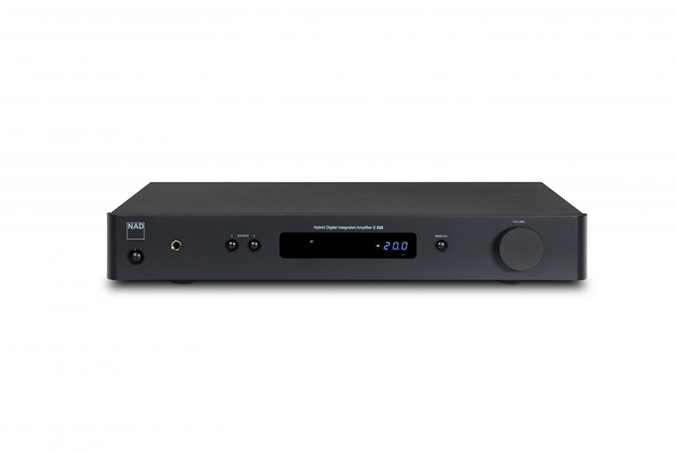

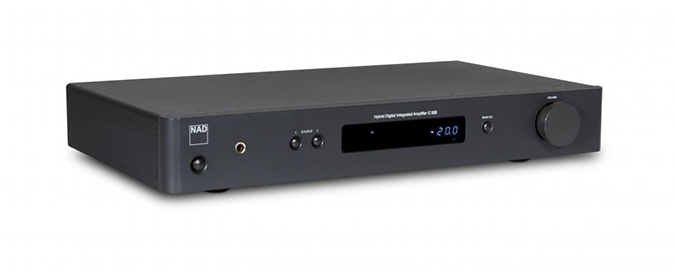

C328 Hybrid Digital DAC vahvistin


Ei varastossa, vain jälkitoimituksena


Aito NAD Classic vahvistin; helppokäyttöinen, hyvä-ääninen ja tehokas.

C328 tuottaa laadukkaan äänen haluamallesi musiikin lähteelle toimien vakaana tehopakkauksena kaiuttimillesi.

Liitä vaikka levysoitin phono -sisääntuloon ja koe vinyylikokoelmasi sointi uudella tavalla, jonka NAD Hybrid Digital vahvistinteknologia tarjoaa.


–   Teho 50W x 2 jatkuva 8 tai 4 Ohmin kuormaan

–   Bluetooth -sisääntulo striimaukseen

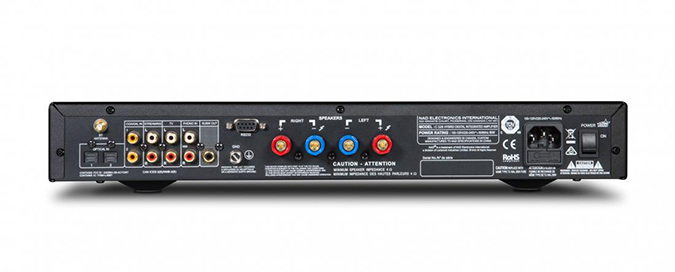

–   levysoitinliitäntä ja 2 kpl analoginen tuloliitäntä

–   2 x optinen ja 2 x koaksiaalinen digitaalinen tuloliitäntä

–   subwoofer liitäntä (rca)

–   kuulokevahvistin

–   Bass EQ

–   IR kaukosäädin

Getting the Basics Right


When it comes to Classic Series amplifiers, no feature is overlooked. Low noise circuits, precise volume control action, and accurate channel balance are all key characteristics of the C 328. With the added bonus of proper input and output impedance traits, plus high overload margins and stability with difficult speaker loads, the C 328 is the best choice for audiophiles who are just starting to build their dream systems. The C 328 also includes a MM phono stage with precisely correct RIAA equalization, high overload margins, extremely low noise, and an innovative circuit to suppress infrasonic noise that is present on all LPs—all without affecting bass response.

Versatility in Spades

The line inputs of the C 328 can accommodate all kinds of analogue source components. It offers ideal input impedance attributes with linear, ultra-low noise buffer amplifiers to prevent any sonic degradation caused by improper loading of the source device. The C 328 also features a separate headphone amplifier with low output impedance and very high output voltage capability, enough in fact to drive even high impedance studio monitor headphones. The low impedance line outputs can also connect to a subwoofer to further extend the versatility of the C 328.

Ready for Streaming

With support for Bluetooth, you can instantly connect and listen to the music service of your choice, or wirelessly stream music and playlists stored directly on your smartphone, tablet or computer. Plus, with its high performance digital circuitry, Bluetooth streaming has never sounded as good as it does with the C 328.


Sophisticated Power

Since moving away from old-fashioned linear power supplies and Class AB output stages, NAD has developed even better performing circuits based on switch mode power supplies and Class D output stages. Once thought to be inferior to traditional topologies, NAD’s advanced work in this area has led to some of the best performing amplifiers on the market today. These new designs are linear over a wide bandwidth and provide consistent performance into all speaker loads, delivering a dramatic advancement.

The power supply of the C 328 is able to provide over 100 watts of audio output when needed. The C 328 can operate with any AC mains voltage from 100V to 240V and provides pure DC power to all of its various stages. This extremely efficient supply also provides near perfect regulation of voltage across a wide range of conditions and provides a solid noise-free foundation for the amplifying stages.

The C 328 uses a customised version of the proven Hypex UcD output stage. This allows for massive power with nearly immeasurable distortion and noise in the audible range. Every detail of this design has been carefully crafted and perfectly executed to wring out the best performance possible. The perfect starter amp for audiophiles and music lovers alike, the C 328 will flawlessly deliver NAD’s signature flexibility and expansive power.


THD (20 Hz – 20 kHz)   <0.005 % at 1 V out

Signal-to-Noise Ratio   >100 dB (A-weighted, 32 ohms, ref. 2V out, unity gain)

Frequency response   ±0.3 dB (20 Hz – 20 kHz)

Output impedance   11 ohms



THD (20 Hz – 20 kHz)   <0.005 % at 1 V out

Signal-to-Noise Ratio   >100 dB (A-weighted, 32 ohms, ref. 2V out, unity gain)

Frequency response   ±0.2 dB (20 Hz – 20 kHz)

Output impedance   200 ohms



THD (20 Hz – 20 kHz)   <0.03 % (100 mW to 40 W, 8 ohms and 4 ohms)

Signal-to-Noise Ratio   >95 dB (A-weighted, 500 mV input, ref. 1 W out 8 ohms)

Frequency response   ±0.3 dB (20 Hz – 20 kHz)


THD (20 Hz – 20 kHz)   <0.03 % (200 mW to 40 W, 8 ohms and 4 ohms)

Signal-to-Noise Ratio   >75 dB with IHF MM cartridge (A-weighted, ref. 5mV input 1 kHz and 1W output in 8 ohms)

Frequency response(RIAA deviation)   ±0.3 dB (20 Hz – 20 kHz)

Note: The RIAA response is consistent with a pre-emphasis that is rolled off at 50kHz by a second order filter, such as used in Neumann cutting lathes.




Gross dimensions (W x H x D)   435 x 70 x 285 mm

Net weight   4.9 kg

Shipping weight   5.9 kg
