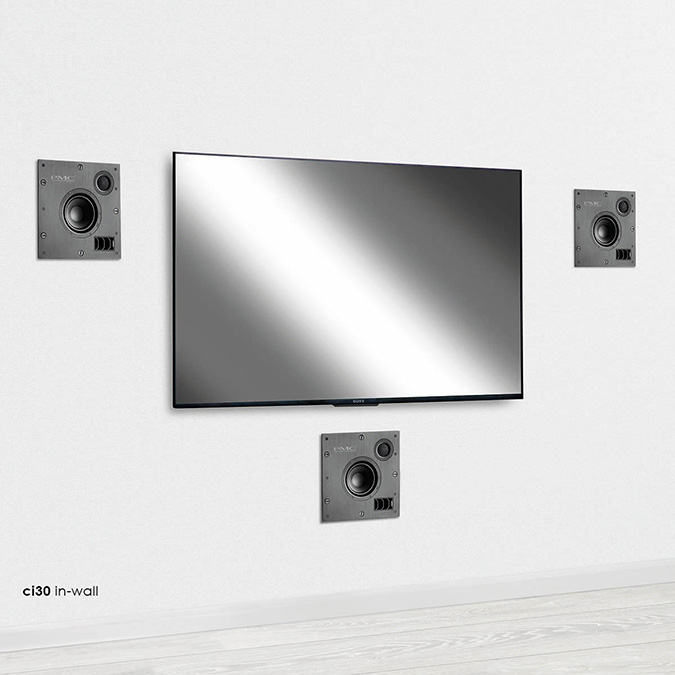

The ci30 is the smallest of the range, perfect for in-ceiling, in-wall or on-wall mounting. It out-performs speakers twice its size, making it ideal for surround channels, Dolby Atmos® and stereo in smaller rooms.
The ci series
The ci series are ideal for playback of stereo and immersive formats, and the largest models provide the greatest headroom, bass and dynamics. All models apart from the ci140 and ci140sub may be mounted in- or on-wall, thanks to their Qikfire™ fittings, bezel-less grille and stylish cabinet sleeve.

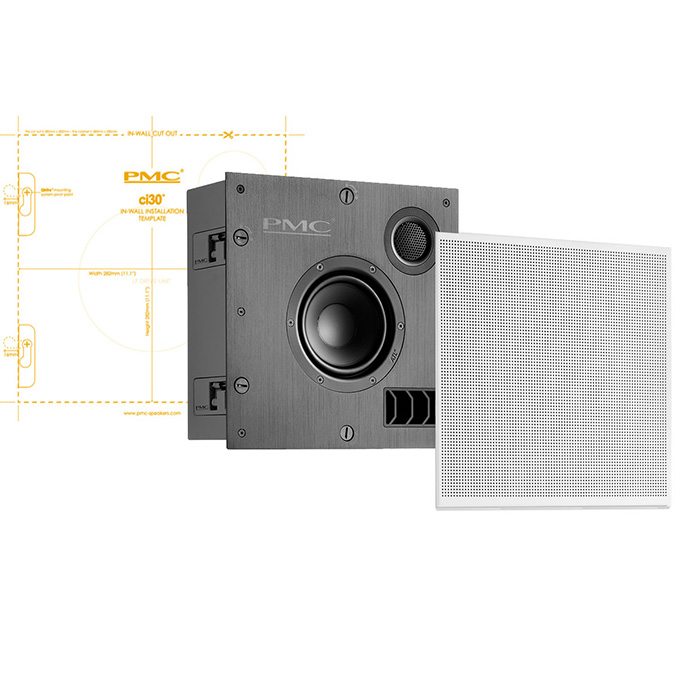

The Qikfire™ in-wall mounting system makes the range very “installer-friendly”. The ci30, ci45, ci90slim and ci65 are fitted with Qikfire, a spring-loaded mounting system which allows the loudspeaker to be fixed in position with a simple twist of a screwdriver. Removal is just as easy as installation, with a simple twist.

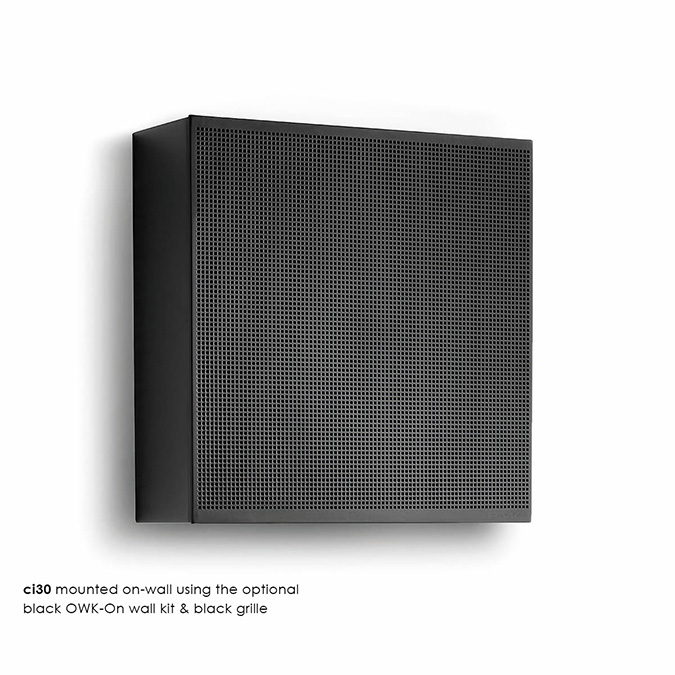

On-wall mounting is just as straightforward as in-wall mounting, using the supplied interlocking bracket, which is designed to also offer pin-point level adjustment. For the ci30, ci45, ci90slim and ci65 an optional OWK – on-wallmounting kit in white or black may be fitted around the cabinets to conceal the in-wall mounting system creating an elegant and discrete on-wall loudspeaker.

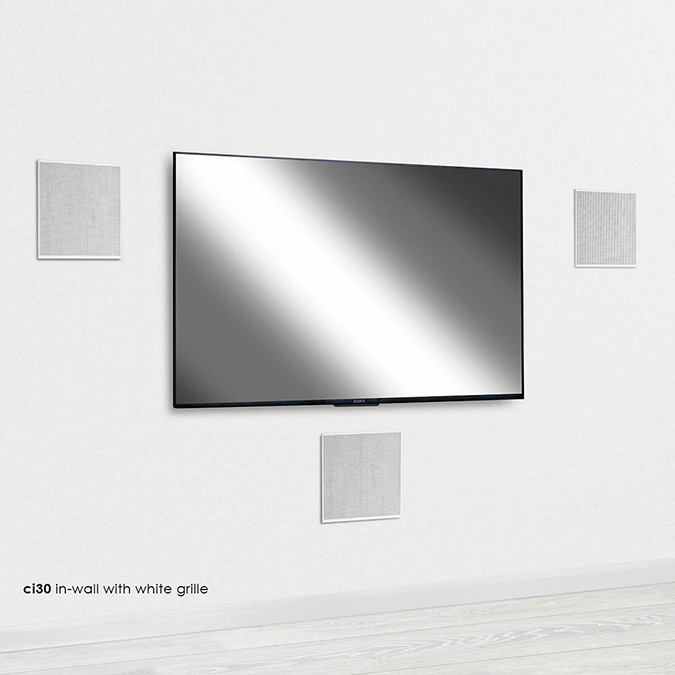

All models feature precision-perforated grilles with magnetic fixings which are finished in white silk. Black silk is available as an option.
Available Finishes:ci series blackDimensions:H 300mm (11.8”) W 300mm (11.8”) D 103mm (4”)Drive Units:LF 133mm (5.25”) Natural Fibre LT™
HF 27mm (1”) soft domeEffective ATL™ Length:1.5m (4.9ft)Frequency Response:47Hz(-3dB)-25kHzImpedance:8 OhmsInput Connectors:1 pair 4mm socketsSensitivity:84dB (2.83v @1m)Recommended Amp Power:40 – 150WRecommended Drive Unit Torque Settings:HF: 0.5Nm LF: 0.6NmWeight:Boxed = 6.5kg
Unboxed (with Grille)= 5kg
Without Grille = 4.5kg
